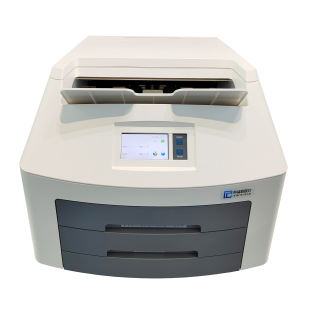

Medical Thermal Camera HYC—5000

The Medical Thermal Camera is a state-of-the-art dry imaging system engineered to produce high-quality prints across a variety of medical and diagnostic settings. This model leverages dry imaging technology, a modern approach that guarantees high-resolution images without relying on chemicals or wet methods. The Medical Thermal Camera accommodates two pixel settings, providing versatility with 320 DPI , thus catering to diverse image detail requirements.

Boasting an impressive grayscale processing capability of ≥14-bit, the system ensures exceptional image quality, making it particularly suitable for applications that require high accuracy, such as ultrasound and other forms of medical imaging. The device is compatible with multiple film types, including dye and silver salt films, and offers customization options tailored to specific operational demands. It supports various film sizes, including 8x10, 10x12, 11x14, 14x14, and 14x17, making it versatile for a wide range of imaging needs.

The Medical Thermal Camera incorporates two supply cassettes, each with the capacity to hold up to 100 sheets of paper, enabling compatibility with multiple film sizes and facilitating efficient handling of large print jobs. Its suction pickup mechanism guarantees smooth and dependable paper feeding, while the printed film is directed into a single output tray for easy access to the printed images.

Designed for speed and efficiency, the system can produce the first sheet in under 70 seconds for a 14x17 film, with a standard throughput of 75 sheets per hour for the same size. For network connectivity, the Medical Thermal Camera features 10/100 Base-T Ethernet (RJ-45) and supports the DICOM protocol, allowing seamless integration with medical devices and hospital information systems.

A standout characteristic of the Medical Thermal Camera is its automatic calibration system, powered by an integrated densitometer. This feature allows for precise adjustments to the heat curve, ensuring consistent print quality. The system is controlled by a proprietary SOC main control chip, offering excellent safety and controllability. The 8-inch touchscreen interface provides an intuitive user experience for effortless operation, while the upper computer system, based on a Linux platform, enables advanced image management and configuration.

In terms of dimensions and operation, the Medical Thermal Camera is compact, measuring 595×665×597 mm and weighing 85 kg, making it well-suited for medical and diagnostic environments where space may be constrained. It operates within a temperature range of 15-30°C, with humidity levels between 20-75% RH, and is capable of withstanding a broad spectrum of environmental conditions, including air pressures ranging from 700 hPa to 1060 hPa.

The system is designed for safe transport and storage, with a storage temperature range from -25°C to 55°C and a transportation temperature range from -40°C to 70°C. It can handle humidity levels from 10-95% RH during storage and up to 95% RH at 45°C during transport.

For enhanced security, the HYC-5000 features RFID identification, ensuring compliance with the highest safety standards. The system operates on 100-240V AC, consuming 8.5-5A at 50/60Hz, and is designed to function efficiently without generating excessive noise.

With its array of advanced features,adaptability, and user-friendliness, the Medical Thermal Camera represents an excellent solution for medical imaging facilities seeking dependable, high-quality thermal printing capabilities.
