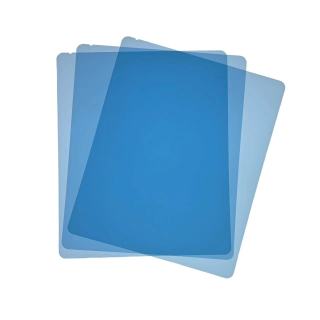

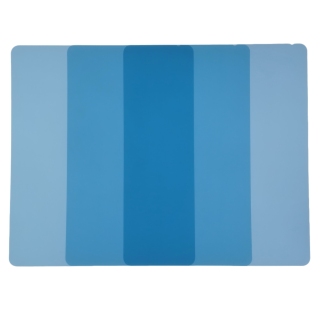

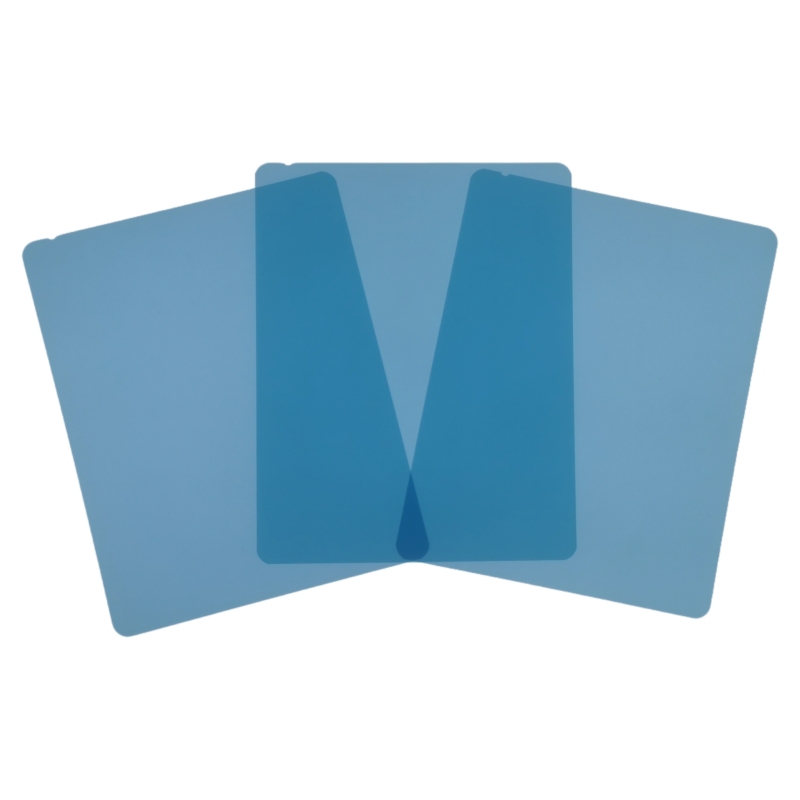

Medical Thermal Imaging Film RM—HL

Product features:

Application departments: CR, DR, CT, MR, DSA and other radiological imaging departments

Imaging color: black and white

Product features: this film is dry film, direct thermal imaging, no fixing fluid.  Low fog, high definition, high density, bright color, convenient diagnosis.

Shelf life: 2 years

Common size:

8x10in, 10x12in,  10x14in, 11x14in, 14x17in

20x25cm, 25x30cm, 20x35cm, 28x35cm, 35x43cm

Applicable printer models:

HYC—4600/HYC—4000

Fuji 3500/2000/Lite

Use environment:

The operating environment is temperature 18 ℃ ~ 24 ℃, relative humidity 50% ~ 65%.

Save the use of precautions:

The original packaging should be stored in a dry, cool, dust-free room to prevent direct sunlight, acid and alkaline gases.

Specific requirements are as follows:

1. Temperature and humidity: temperature 10 ℃ ~ 23 ℃, relative humidity 30% ~ 65%, stored away from heat source.

2. Gas: There shall be no acid and alkaline gases such as hydrogen sulfide, ammonia, sulfur dioxide and formaldehyde in the storage room.

3. Stacking form: should be placed in storage, so as not to be adversely affected by pressure.

Output Time

The output time for the Medical Thermal Imaging Film must be less than 1100 seconds. During testing, the actual output time was recorded at 70 seconds, significantly faster than the requirement. This rapid processing time ensures efficient workflow in medical imaging departments, passing the test with flying colors.

Resolution (DPI)

The resolution requirement for the Medical Thermal Imaging Film is greater than 300 DPI. Testing revealed an actual resolution of 400 DPI, exceeding the standard. High-resolution images are critical for accurate diagnosis, making this result particularly significant. The film's superior resolution ensures clear and detailed imaging.

Thermal Medical Films Overview:

Medical Thermal Imaging Film are enhanced through a nanometer-scale ink-absorbing coating, a waterproof layer, and a three-color gradient black technology, which repurpose special paper into a suitable printing medium for medical imaging. These Medical Thermal Imaging Film are designed to be waterproof, light-resistant, and heat-resistant, ensuring they can be preserved for decades. Additionally, they utilize lossless high grayscale image transmission technology, allowing for the printing of various medical imaging types that are clear, environmentally friendly, and highly compatible. The structure of medical film photography is characterized by smaller, round silver halide particles that have a smaller surface area compared to flowing particles, enabling greater light absorption and faster sensitivity.

Film Characteristics and Applications:

 The front side of Medical Thermal Imaging Film is coated with emulsion, while the back side features a anti-bleed layer. These Medical Thermal Imaging Film are suitable for various medical imaging applications, includingCT, and ultrasound imaging. This type of film can be processed using both high-temperature machinery and manual processing at room temperature. When combined with contrast-enhancement screens, these Medical Thermal Imaging Film provide clear images that accurately display abnormalities and lesions in the human body. The films can be used for both high-temperature machine processing and room-temperature manual processing and cleaning.

Versatility and Performance:

The versatility of Medical Thermal Imaging Film allows for their application in diverse imaging techniques, making them indispensable in medical settings. Their unique structural properties not only enhance the clarity of the images produced but also ensure compatibility with various imaging systems, thus broadening their usability. Furthermore, the Medical Thermal Imaging Film resilience against environmental factors contributes to their longevity and reliability in critical medical applications.
