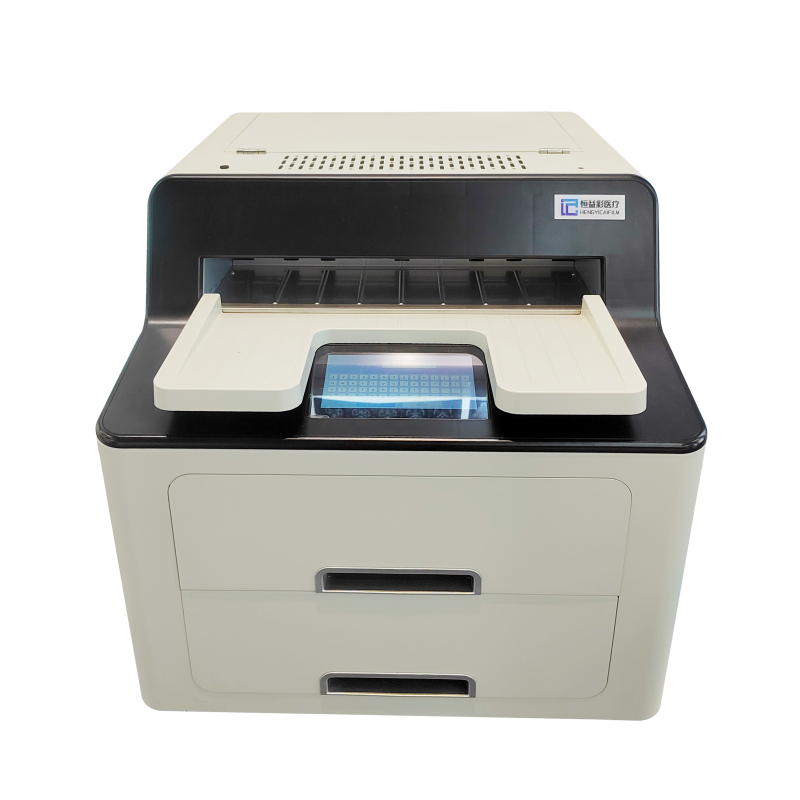

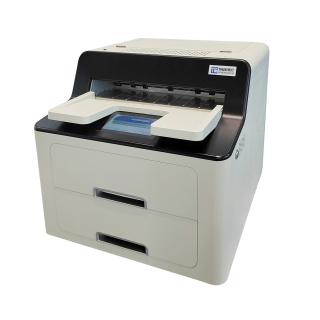

Medical Dry Imager HYC—4000
Models:HYC-4000
Imaging modeDry imaging technology
Resolutions320DPI
Upper computer configurationMemory:8GB Hard disk:64GB
Grayscale level14bit
Models: | HYC-4000 | |
Imaging mode | Dry imaging technology | |
Resolutions | 320DPI | |
Upper computer configuration | Memory:8GB Hard disk:64GB | |
Grayscale level | 14bit | |
Film type | RM-HL,RM-HA1 | |
Film size | Multi-size compatible,8x10,10x12,11x14,14x14,14x17 | |

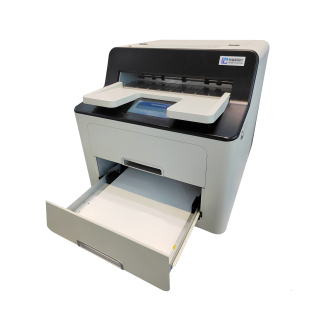

Film input | 2 supply tray(100 sheets per tray),all compatible with multiple film sizes | |
Pickup method | Suction | |
Film output | 1 output tray | |
Boot time | 24 seconds | |
Time needed to print the first sheet | Less than 70 seconds(14x17) | |
Throughput | 100 sheets/hour(14x17) | |
Interface | 10/100 Base-T Ethemet(RJ-45) | |
Auto calibration mode | Bulit-indensitometer,automatic calibration of the heat curve | |
Network protocol | DICOM 3.0 | |
Safety and controllability | HYC's self-developed SOC main control chip | |
Operation screen | 8 inch touch screen | |
Image Control | Configuration of the upper computer system,specialized system software | |
Upper computer system | Linux system | |
Dimension(LxW×H) | 595×665×597 mm | |
Weights | 85KG | |
Power | 100-240VAC 50/60HZ | |
Working Environment | Temperature | 15-30℃ |
| Humidity | 20-80%RH |
| Air pressure | 700hPa to 1060hPa |
The Medical Dry Imager is a state-of-the-art thermo-graphic film processor specifically engineered for the efficient copying and transmission of medical images through the widely recognized DICOM (Digital Imaging and Communications in Medicine) network protocol. This advanced imaging solution is at the forefront of modern medical technology, utilizing the latest innovations in direct dry thermal imaging technology to deliver exceptional performance and quality.
One of the key strengths of the Medical Dry Imager is its remarkable versatility, accommodating a comprehensive range of imaging modalities. It excels in handling images from various diagnostic techniques, including CT, MRI, DR, CR, digital gastrointestinal imaging, nuclear medicine, mobile X-ray imaging, and dental imaging. This wide applicability makes the HYC Series Dry Imager an invaluable asset for hospitals, clinics, and imaging centers, streamlining their imaging processes and enabling them to provide comprehensive diagnostic services across multiple specialties.
In summary, the Medical Dry Imager represents a significant advancement in the field of medical imaging. With its ability to efficiently copy and transmit high-quality images across a range of modalities, Medical Dry Imager serves as an essential tool for healthcare professionals striving for precision in diagnosis. By combining outstanding image quality with affordability and user-friendly operation, the Medical Dry Imager plays a crucial role in enhancing diagnostic capabilities and improving patient care in diverse medical settings. As the demand for reliable and effective imaging solutions continues to grow, the Medical Dry Imager stands ready to meet these challenges and contribute to the future of medical diagnostics.
Directly digitalimaging technologyUsing directly digital imaging technology:
the entire imaging process is completed in one step, avoiding the edge distortion andoptical calibration distortion of traditional scanning imaging, improving imaging performance and stability with outputting highquality medicalimaging.
Built-in optical densitometer:
The system has pre-stored a variety of commonly used image curves, and the built-in optical densitometer can automatically matchprofessional image output curves according to the unique imaging properties of the film.
Modular structure:
The value of the modular structure is that the operation is more stable and the maintenance is more convenient. The modular self.test function allows the equipment to self-diagnose when Medical Dry Imager fails, so as to quickly lock the fault point and the parts that need to bereplaced, which can greatly reduce the downtime caused by equipment failure and improve work eficiency.
Brightroom operation:
Brightroom operation brings great portability to users. No longer need to be operated in a darkroom environment. We can openand add film directly in daylight, including adding bulk film,thus fundamentally eliminating the scrapping caused by film leakage.
