Temperature and Humidity: The Radiology Dry Film should be stored in a controlled environment with a temperature range of 10℃ to 25℃ and a relative humidity between 30% and 65%. It is crucial to keep the Radiology Dry Film away from heat sources to prevent any degradation in quality and functionality.
Gas Environment: The storage area must be free from harmful gases, including acidic and alkaline substances such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde. Exposure to these gases can adversely affect the Radiology Dry Film, leading to irreversible damage and a decline in performance.
Stacking and Handling: The Radiology Dry Film should always be stored upright to avoid pressure-related damage. Proper stacking helps maintain the integrity of the film. During transportation, it is essential that the Radiology Dry Film is shielded from sunlight, rain, strong ultraviolet radiation, and violent vibrations, as these factors can compromise its quality.
By adhering to these guidelines, facilities can ensure the optimal preservation of Radiology Dry Film, facilitating high-quality imaging and effective diagnostic outcomes. Proper storage and handling are vital for maintaining the film’s performance in medical applications.
Direct thermal imaging technology has become the dominant product in today's medical imaging hard copy market due to its advantages of being rapid, simple, cost-effective, and environmentally friendly. The performance, tone, and durability of the printer are three critical factors that determine the quality of the film.
Performance and Tone
The performance and tone of the film directly depend on the ion thermal diffusion speed and distance within the thermosensitive imaging layer. Therefore, the degree and strength of cross-linking play a crucial role in determining the film's performance and tone. Additionally, researchers have found that the compatibility and durability between the film and the thermal head of the printer are closely related to the cross-linking strength of the thermosensitive imaging layer.
Unique Features and Environmental Benefits
The Radiology Dry Film offers several unique features that enhance its utility and environmental impact:

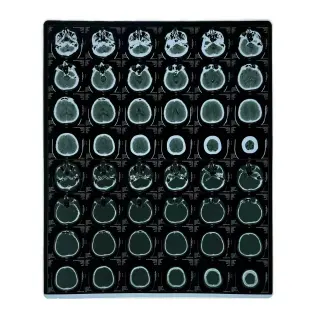

Digital Storage and Output: This film can accurately reproduce various medical device images after computer processing. It facilitates the direct thermal printing of images derived from computed radiography (CR), digital radiography (DR), computed tomography (CT), magnetic resonance imaging (MRI), and other imaging technologies. This capability eliminates the need for traditional silver halide products' complex development, fixing, and cleaning processes.
Environmental Friendliness: By removing the need for wet processing chemicals, the RM-HL film thoroughly addresses the issue of waste liquid disposal that traditionally harms the environment. This makes it an eco-friendly alternative, reducing the ecological footprint associated with medical imaging.
Image Quality: The Radiology Dry Film boasts minimal fog, high picture clarity, large density, and vivid color reproduction. These attributes ensure that healthcare professionals can rely on the film for accurate and detailed diagnostic images.
User Convenience: The Radiology Dry Film is easy to use and compatible with a wide range of leading brands of medical thermal printers available in export markets. Its robust design and superior performance make it a preferred choice for medical facilities worldwide.
Special Considerations for Thermal Imaging Stability
One important aspect to consider with thermal imaging materials is the stability of the printed images over time. The colors produced by the thermal reaction can be unstable and may naturally fade over time because the color reaction is reversible. Colored products can decompose at varying rates, causing the image to gradually lose its intensity until it eventually disappears entirely. Several factors can accelerate this fading process:
Long-term Storage: Extended periods of static storage can hasten the decomposition of colored products.
Prolonged Light Exposure: Continuous exposure to light can increase the rate of color degradation.
Heat Exposure: Prolonged heating or high ambient temperatures can accelerate the breakdown of the colored material.
Humidity: High humidity levels can also contribute to faster fading.
Contact with Adhesives: Contact with adhesive materials such as tape can exacerbate color loss.
The speed of fading also depends on the quality of the thermosensitive material itself. Therefore, it is essential to store the Radiology Dry Film away from heat sources, in low humidity environments, and avoid exposing it to prolonged light or heat.
Conclusion
All test items have been rigorously evaluated, and the results confirm that the Model Radiology Dry Film meets all specified standards. The product quality is fully qualified, ensuring it delivers reliable and high-quality imaging performance suitable for various medical imaging applications. Healthcare professionals can trust the RM-HL Radiology Dry Film to provide accurate, detailed images that support effective diagnosis and treatment planning.
The combination of advanced materials and robust design ensures that the Radiology Dry Film remains at the forefront of medical imaging technology, offering unparalleled clarity and durability for years to come. Its innovative features and environmental benefits make it an indispensable tool in modern healthcare settings, enhancing diagnostic accuracy and operational efficiency while promoting sustainability.
By adhering to proper storage and handling guidelines, healthcare providers can maximize the longevity and reliability of the Radiology Dry Film, ensuring consistent high-quality imaging results.
