Dry Daylight Load Film

Temperature and Humidity: The Dry Daylight Load Film should be stored in a controlled environment with a temperature range of 10℃ to 25℃ and a relative humidity between 30% and 65%. It is essential to keep the Dry Daylight Load Film away from heat sources to maintain its quality and functionality.
Gas Environment: The storage room must be free from any harmful acid and alkaline gases, such as hydrogen sulfide, ammonia, sulfur dioxide, and formaldehyde. These gases can negatively impact the integrity of the Dry Daylight Load Film, leading to potential damage and reduced performance.
Stacking Type: The Dry Daylight Load Film should always be stored upright to avoid any adverse effects caused by pressure. Proper stacking helps maintain the film’s quality. Additionally, during transportation, the Dry Daylight Load Film must not be exposed to sunlight, rain, strong ultraviolet radiation, or violent vibrations, as these conditions can compromise its integrity.
By following these guidelines, users can ensure that their Dry Daylight Load Film remains in optimal condition for effective use in medical imaging. Proper storage and handling are critical for preserving the film's quality and performance.

Send Inquiry Now

The HENGYICAIFILM Thermal Printing System leverages advanced technology to deliver high-quality medical imaging solutions. Central to this system is the use of Dry Daylight Load Film, which offers significant advantages over traditional film-based methods. This innovative approach not only enhances image quality and processing efficiency but also promotes environmental sustainability.

Film Construction and Eco-Friendly Design

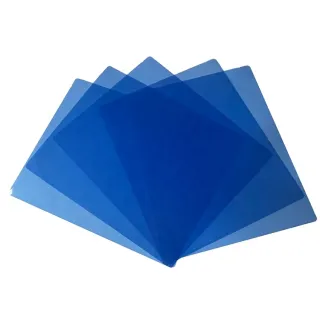

The Dry Daylight Load Film used in the HENGYICAIFILM thermal printing system is manufactured from large rolls that are coated on both sides with a thermal imaging layer and a thermal protection layer. A key feature is its absence of light-sensitive silver halides, making it an environmentally friendly alternative to conventional film. This eco-conscious design ensures that the film can reproduce digitally stored medical images after computer processing without contributing to environmental pollution.

Advanced Imaging Capabilities

The system is designed to handle a wide range of medical digital imaging formats, including:

CR (Computed Radiography)

DR (Digital Radiography)

CT (Computed Tomography)

MRI (Magnetic Resonance Imaging)

Its compatibility extends to leading printers from brands like Fuji, Agfa, and other dry imaging equipment, ensuring seamless integration with existing systems in medical facilities. This flexibility allows healthcare providers to leverage their current infrastructure while benefiting from the superior performance of the HENGYICAIFILM system.

Benefits of the Dry Daylight Load Film

High-Quality Imaging: The film provides exceptional resolution and image clarity, ensuring that even the most detailed medical images are available for diagnostic purposes. Healthcare professionals can rely on these high-fidelity images to support accurate and timely patient care.

Efficient Processing: By eliminating the need for traditional chemical processing, the system simplifies the imaging workflow, reducing waste and minimizing environmental impact.

Daylight Loading Capability: The film can be loaded and handled in daylight conditions, eliminating the need for darkroom environments and streamlining operational processes.

Sustainability: The eco-friendly design contributes to a more sustainable and environmentally responsible medical environment, aligning with global efforts to reduce carbon footprints and chemical waste.

Applications and Performance

The Dry Daylight Load Film is ideal for environments that demand high-speed, high-quality imaging while maintaining environmental responsibility. Whether it's routine diagnostic imaging or specialized applications, the film ensures consistent and reliable performance. Key performance metrics include:

Fog Density: ≤ 0.25, ensuring minimal background noise for clearer images.

Maximum Density: ≥ 2.8, providing excellent contrast and detail.

Resolution: Greater than 300 DPI, with actual results often exceeding 400 DPI.

Coating Durability: Tested for adhesion and wet fastness, the coating remains intact under rigorous conditions.

Conclusion

By combining advanced thermal technology with digital compatibility, the HENGYICAIFILM Thermal Printing System with Dry Daylight Load Film offers a reliable, efficient, and eco-friendly solution for medical imaging. Healthcare providers can trust this system to deliver consistently high-quality images, enhancing diagnostic accuracy and supporting effective patient care while promoting environmental sustainability.
